Design and project management
KARL HUGO assists its customers by using a cost engineering approach. The drawings produced are submitted to the manufacturer for comment. Each mechanical component is discussed and analysed by KARL HUGO, which proposes the best compromise of cost to reliability.
Design & Plans
Having a complete engineering office, KARL HUGO produces all the types of technical drawings required for the projects entrusted to it. In addition, the engineers perform the different analyses.
Design in 3D (SolidWorks)
Load analysis and finite elements calculation
Drawings (2D) with full BOM
Electrical, pneumatic and hydraulic circuit drawings
Service & Documentation

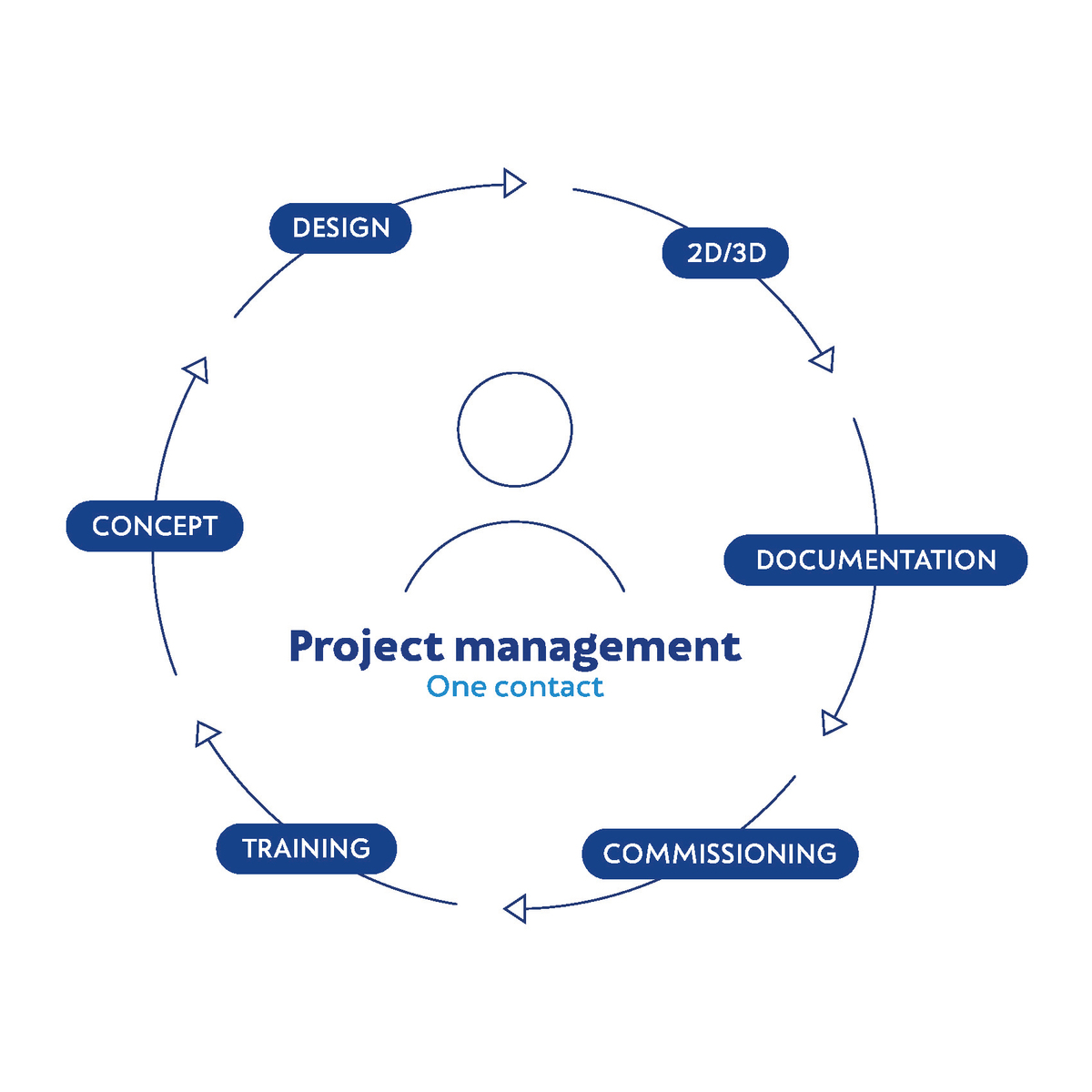

A single contact
KARL HUGO appoints your contact person the moment the order is placed. This person will follow the project from the earliest design meetings through to commissioning at your facilities and operator training.
Documentation and CE marking in accordance with Machinery Directive (2006/42/EC)
On-site integration: assistance with installation and commissioning
